'Bartender' Stainless Steel Modular Bar System from IMC



IMC

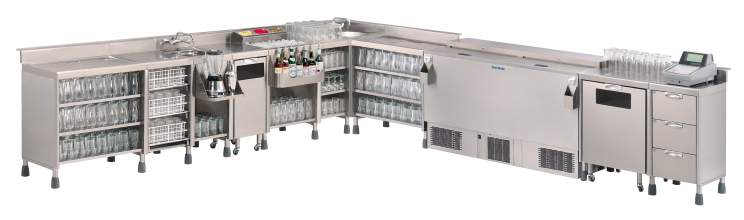

IMC Bartender - Complete Bar

The Bartender modular underbar system provides a faster and friendlier service for bar staff and customers alike. Bartender's outstanding versatility helps to maximise productivity and accelerate sales. All this plus the highest build specification on the market and sleek, classical good looks makes Bartender a superb investment in your business.

The bar-workstation is a concept pioneered by IMC. Modular in construction, it comprises underbar and, where appropriate, refrigerated units, ergonomically arranged to provide a compact yet highly productive workspace for bar staff.

A typical beer bar-workstation incorporates Bartender and BK top loading bottle coolers to provide both draught beer and plentiful storage for bottles, cans and glasses. This layout is designed for quick, easy service to crowds of thirsty customers, maximising your profits.

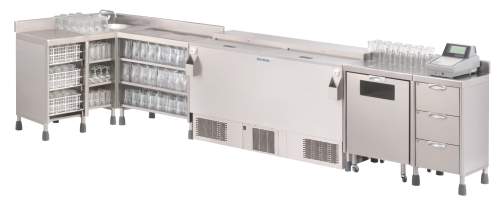

IMC Bartender Beer Bar-Workstation

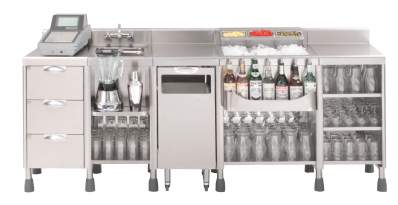

IMC Bartender Coctail Bar-Workstation

For a compact, stylish cocktail bar-workstation, take a look at the example shown. Everything is close at hand for mixing, blending and serving. This solution makes it easy for bar staff to provide an efficient and friendly service.

IMC bar-workstations are all about better bar planning, and better bar planning means faster service, happier customers and greater customer loyalty.

Bartender's wide range of modules and accessories offer unlimited options of bar layout to create a solution that meets all your needs. Even curved and angles bars present no problems. Standard corner sections and custom-made infills allow a continuous bar of virtually any shape to be installed.

Individual modules are easy to plan into most schemes. Optional bar supports complete the system. They support the bar top and front while leaving the underbar space clear for bartender units and creating a void for channelling services.

Standard bartender units have a depth of 560mm, with a special order depth of 500mm available on request. The work surface depth for both options is 475mm.



IMC Bartender Bar System Leg FrameIMC Bartender Bar System Dimensions

IMC Bartender Bar System The Bartender bar support is used to carry the bar top, support the bar front, and provide a 150mm void for running water, waste and drinks lines. When using bar supports 500mm deep units are recommended.

KCM can provide a complete service to compliment the Bartender range, we are able to take your project from initial conception providing a full design and quotation for not just the supply of the Bartender range but also all the associated enabling works, services, bar fronts, tops, floors, walls, ceilings, finishes and installation providing a single point of contact from start to finish.

IMC Bartender Bar System Ice Chest
Ice Chest
400, 600,800 or 1000mm wide


IMC Bartender Bar System Ice Chest with Covers
Ice Chest with Covers
400, 600, 800 or 1000mm wide


IMC Bartender Bar System Shelf Unit
Shelf Unit (with stainless steel
or wire shelves)
400, 500, 600, 800
or 1000mm wide
IMC Bartender Bar System Shelf Drainer
Shelf Drainer (with stainless steel
or wire shelves)
400, 600, 800 or 1000mm wide

IMC Bartender Bar System Perforated Worktop
Perforated Worktop
400, 600,800 or 1000mm wide

IMC Bartender Bar System Beer Station
Beer Station
400 or 800mm wide

IMC Bartender Bar System Glasswasher Stand
Glasswasher Stand
500mm wide

IMC Bartender Bar System Basket Rack
Basket Rack
445, 505 or 555mm wide

IMC Bartender Bar System Single Sink Unit
Single Sink Unit
400, 600,800 or 1000mm wide
(400mm no drainer)

IMC Bartender Bar System Double Sink Unit
Double Sink Unit
600, 800 or 1000mm wide
(600 & 800mm no drainer)


IMC Bartender Bar System Worktop Unit
Worktop Unit
400, 600,800 or 1000mm wide



IMC Bartender Bar System Blender Station
Blender Station
400mm wide


IMC Bartender Bar System Till Unit
Till Unit
520mm wide


IMC Bartender Bar System Waste Unit
Waste Unit
400mm wide



IMC Bartender Bar System Storage Cupboard
Storage Cupboard
400, 600,800 or 1000mm wide


IMC Bartender Bar System Single Drawer Unit
Single Drawer Unit
400 or 600mm wide

IMC Bartender Bar System Three Drawer Unit
Three Drawer Unit
400 or 600mm wide

IMC Bartender Bar System Hand Wash Unit
Hand Wash Unit
300 or 400mm wide

IMC Bartender Bar System Bottle Bin




Bottle Bin
400 or 600mm wide
(requires Bridge)

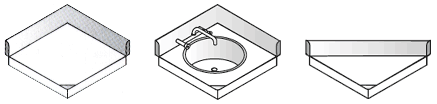

IMC Bartender Bar System Corner Unit

Corner Unit
IMC Bartender Bar System Corner Unit with Wash Hand Basin
Corner Unit with
Wash Hand Basin

IMC Bartender Bar System Corner Top

Corner Top
IMC Bartender Bar System Plain Bridge
Plain Bridge
400, 600,800 or 1000mm wide


IMC Bartender Bar System Drainer Bridge
Drainer Bridge
400, 600,800 or 1000mm wide




Various Accessories are available for use with IMC Bartender

IMC Bartender Bar System Leg Frame







Leg Frame
IMC Bartender Bar System Bar Support

Bar Support
IMC Bartender Bar System Plinth



Plinths
IMC Bartender Bar System Single / Double Leg Pole
Single / Double Pole Leg
IMC Bartender Bar System Speed Rail

Speed Rail
IMC Bartender Bar System Double Speed Rail
Double Speed Rail
IMC Bartender Bar System Add on speed rail



Add-on Speed Rail
IMC Bartender Bar System Speed rail lock




Speed Rail Lock
IMC Bartender Bar System Blender Shelf




Blender Shelf
IMC Bartender Bar System Condiment Set
Condiment Set
IMC Bartender Bar System Bottle Opener

Bottle Opener
IMC Bartender Bar System Wash Hand Basin








Wash Hand Basin
IMC Bartender Bar System Single Trim
Single Trim
IMC Bartender Bar System Double Trim
Double Trim
IMC Bartender Bar System Corner Trim
Corner Trim
IMC Bartender Bar System Soap Dispenser


Soap Dispenser
IMC Bartender Bar System Paper Towel Dispenser



Paper Towel Dispenser
IMC Bartender Bar System Fresh Water Dispenser
Fresh Water Dispenser
IMC Bartender Bar System Towel Rail


Towel Rail
IMC Bartender Bar System Decor Panel

Decor Panel

For further information on units available, our design service, pricing or other services please contact our sales team on 01476 593062 or email your enquiry using our contacts page.

Our new website at http://www.kcm-catering-equipment.co.uk/acatalog/Bartender_Stainless_Steel_Modular_Underbar_System.html has more information
