Pass Through / Hood Type Dishwashers - Single Rack from Hilta, Meiko, Comenda and Whirlpool

For pricing and online purchase please see our new website at

www.kcm-catering-equipment.co.uk (click for link)



Model


Specification


Price (ex. VAT)


Hilta W/14 Pass Through Dishwasher
Hilta W14
Pass Through Hood Dishwasher


3 x 500mm x 500mm square baskets (one open & two plate)
Capacity 18 x 10" plates
Rinse aid pump
Electrical Loading : 7.5kW 240v 30 amp or 3 phase supply
690mm x 780mm x 1930mm (open)
One year parts and labour  warranty

Optional warranty for 2nd and 3rd year available
Additional baskets available as optional extra
Detergents available please contact us for more details


Hilta

for current pricing see our new website with online purchase facility - link at top of page

Whirlpool AGB 669/WP Pass Through Dishwasher
Whirlpool AGB 669/WP
Pass Through Dishwasher
60 / 90 / 120 second cycle times
500mm square basket model
Stainless steel AISI 304 cabinet
Double skinned insulated cabinet
Moulded tank with double filter system
Hot water automatic rinse
Integral break tank
Rinse aid pump
Auto self draining wash pump
Water consumption 3.5 litres / cycle
390mm clearance
1 18 dish basket
1 glass basket
1 teaspoon rack
1 uni basket
32 litre tank capacity
9 litre boiler capacity
6kW tank element
0.75kW wash pump
Warranty: One Year parts and labour
Electric rating: 6.75kW 400V/3N
650mm x 775mm x 1500mm
Whirlpool Professional

for current pricing see our new website with online purchase facility - link at top of page

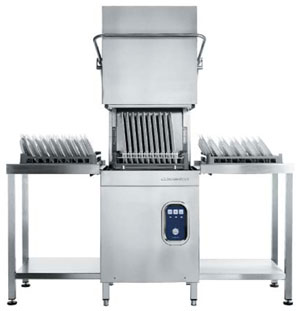

Comenda LC Pass Through Dishwasher Series
Comenda LC700
Eco Pass Through Dishwasher

(shown with optional tabling)

Hood type dishwasher
90 / 120 / 180 second cycles
440mm clearance
Single or three phase supply - please specify
500mm square basket
Internal class 'A' air gap
Rinse booster pump
Rinse aid injector
Straight through or corner operation
0.75kW wash pump
Door micro switch
Electrical Loading :
6.75kW (Single or Three Phase)  - HOT FEED
10kW (Single or Three Phase) - COLD FEED
625mm x 760mm x 1460mm (710mm x 770mm in handles)
Two years parts and labour  warranty
Comenda

for current pricing see our new website with online purchase facility - link at top of page

Comenda LC Pass Through Dishwasher Series
Comenda LC900
Eco Pass Through Dishwasher

(shown with optional tabling)

Hood type dishwasher
75 / 120 / 180 second cycles
440mm clearance
Single or three phase supply - please specify
500mm square basket
Internal class 'A' air gap
Rinse booster pump
Rinse aid injector
Straight through or corner operation
1.1kW wash pump
Door micro switch
Electrical Loading :
9.1kW (Single or Three Phase)  - HOT FEED
13.5kW (Single or Three Phase) - COLD FEED
625mm x 760mm x 1460mm (710mm x 770mm in handles)
Two years parts and labour  warranty
Comenda

for current pricing see our new website with online purchase facility - link at top of page

Comenda LC Pass Through Dishwasher Series
Comenda LC1200
Eco Pass Through Dishwasher

(shown with optional tabling)

Hood type dishwasher
55 / 85 / 120 second cycles
440mm clearance
Single or three phase supply - please specify
500mm square basket
Internal class 'A' air gap
Rinse booster pump
Rinse aid injector
Straight through or corner operation
1.5kW wash pump
Door micro switch
Electrical Loading :
10.5kW (Single or Three Phase)  - HOT FEED
15.5kW (Single or Three Phase) - COLD FEED
625mm x 760mm x 1460mm (710mm x 770mm in handles)
Two years parts and labour  warranty
Comenda

for current pricing see our new website with online purchase facility - link at top of page

Comenda C1000E Professional Pass Through Dishwasher
Comenda Linea C1000E Professional Pass Through Dishwasher
Hood type dishwasher
65 / 100 / 150 / 480 second cycles
440mm clearance
500mm square basket
Internal class 'A' air gap
Rinse booster pump
Rinse aid injector
Straight through or corner operation
1.1kW wash pump
Door micro switch
Electrical Loading :
10.1kW (Sinlge or Three Phase)  - HOT FEED
15.1kW (Single or Three Phase) - COLD FEED
625mm x 760mm x 1460mm (710mm x 770mm in handles)
Two years parts and labour  warranty
Comenda

for current pricing see our new website with online purchase facility - link at top of page

Comenda C1300E Professional Pass Through Dishwasher
Comenda Linea C1300E Professional Pass Through Dishwasher
Hood type dishwasher
50 / 90 / 120 / 480 second cycles
440mm clearance
500mm square basket
Internal class 'A' air gap
Rinse booster pump
Rinse aid injector
Straight through or corner operation
1.5kW wash pump
Door micro switch
Electrical Loading :
11.5kW (Single or Three Phase)  - HOT FEED
15.5kW (Single or Three Phase) - COLD FEED
625mm x 760mm x 1460mm (710mm x 770mm in handles)
Two years parts and labour  warranty
Comenda

for current pricing see our new website with online purchase facility - link at top of page

Meiko ECO 545D Pass Through Dishwasher
MEIKO ECO-545D
Pass Through Hood Dishwasher

(shown with optional tabling
and pre-rinse spray)


Up to 720 Dinner plates per hour
Basket size 500mm x 500mm
Passing height of 440mm
90,120 and 240 second programmes
Internal basket guides adjustable on site for corner or straight operation
Suitable for softened hot or cold fill
Detergent and rinse aid dosing pump incorporated
Soft start feature on wash pump motor
Wash and rinse system top and bottom
Hose and cable connection kit included
Touch sensitive controls (no switches)
Hot or cold connection can be selected at time of installation
1 phase or 3 phase connection can be selected at time of installation
Class 'A' air gap with rinse booster pump
Two finger type plate racks
One open type cup / bowl rack
Two eight compartment cutlery racks
Self cleaning cycle following drain down
Wash pump rating 0.73kW
50°C hot fill - 3 phase - 8.28kW - 40 rack capacity / hour
50°C hot fill - 1 phase - 5.78kW - 40 rack capacity / hour
10°C cold fill - 3 phase - 8.28kW - 40 rack capacity / hour
10°C cold fill - 1 phase - 5.78kW - 30 rack capacity / hour
635mm x 750mm x 1470mm (1965mm)
One year parts and labour  warranty

Detergents available please contact us for more details


Meiko

for current pricing see our new website with online purchase facility - link at top of page
Meiko DV80.2 Pass Through Dishwasher
MEIKO DV80.2
Pass Through Hood Dishwasher

(shown with optional tabling
and pre-rinse spray)


Up to 1080 Dinner plates per hour
Basket size 500mm x 500mm
Passing height of 440mm
60,90 and 210 second programmes
Internal basket guides adjustable on site for corner or straight operation
Suitable for softened hot or cold fill
Detergent and rinse aid dosing pump incorporated
Soft start feature on wash pump motor
Wash and rinse system top and bottom
Hose and cable connection kit included
Touch sensitive controls (no switches)
Hot or cold connection can be selected at time of installation
1 phase or 3 phase connection can be selected at time of installation
Class 'A' air gap with rinse booster pump
Two finger type plate racks
One open type cup / bowl rack
Two eight compartment cutlery racks
Self cleaning cycle following drain down
Wash pump rating 0.73kW
Aqua stop system for water leak detection
Aktiv Plus double filtration of wash water
Perforated covers over wash tank
Integral drain pump for high level waste
50°C hot fill - 3 phase - 8.3kW - 60 rack capacity / hour
50°C hot fill - 1 phase - 5.8kW - 55 rack capacity / hour
10°C cold fill - 3 phase - 8.3kW - 55 rack capacity / hour
10°C cold fill - 1 phase - 5.8kW - 40 rack capacity / hour
635mm x 750mm x 1470mm (1965mm)
One year parts and labour  warranty

Detergents available please contact us for more details


Meiko

for current pricing see our new website with online purchase facility - link at top of page
Meiko DV80.2 Pass Through Dishwasher
MEIKO DV80.2Aktiv
Pass Through Hood Dishwasher with integral softener

(shown with optional tabling
and pre-rinse spray)


Up to 1080 Dinner plates per hour
Basket size 500mm x 500mm
Passing height of 440mm
60,90 and 210 second programmes
Internal basket guides adjustable on site for corner or straight operation
Suitable for untreated hot or cold fill
Detergent and rinse aid dosing pump incorporated
Soft start feature on wash pump motor
Wash and rinse system top and bottom
Hose and cable connection kit included
Touch sensitive controls (no switches)
Hot or cold connection can be selected at time of installation
1 phase or 3 phase connection can be selected at time of installation
Class 'A' air gap with rinse booster pump
Two finger type plate racks
One open type cup / bowl rack
Two eight compartment cutlery racks
Self cleaning cycle following drain down
Wash pump rating 0.73kW
Aqua stop system for water leak detection
Aktiv Plus double filtration of wash water
Perforated covers over wash tank
Integral drain pump for high level waste
50°C hot fill - 3 phase - 8.3kW - 60 rack capacity / hour
50°C hot fill - 1 phase - 5.8kW - 55 rack capacity / hour
10°C cold fill - 3 phase - 8.3kW - 55 rack capacity / hour
10°C cold fill - 1 phase - 5.8kW - 40 rack capacity / hour
635mm x 750mm x 1470mm (1965mm)
One year parts and labour  warranty

Detergents available please contact us for more details


Meiko

for current pricing see our new website with online purchase facility - link at top of page
Meiko DV120.2 Dish and Utensil Washer
MEIKO DV120.2
Pass Through Hood
Dish and Utensil Washer

(shown with optional tabling
and pre-rinse spray)


Dual Dish and Utensil Washer
Up to 1080 Dinner plates per hour
Basket size 500mm x 500mm
Passing height of 440mm
60,90 and 210 second programmes
Internal basket guides adjustable on site for corner or straight operation
Suitable for softened hot or cold fill
Detergent and rinse aid dosing pump incorporated
Soft start feature on wash pump motor
Wash and rinse system top and bottom
Hose and cable connection kit included
Touch sensitive controls (no switches)
Hot or cold connection can be selected at time of installation
Class 'A' air gap with rinse booster pump
Two finger type plate racks
One open type cup / bowl rack
Two universal utensil washing racks
Two eight compartment cutlery racks
Self cleaning cycle following drain down
Wash pump rating 1.1kW
Aqua stop system for water leak detection
Aktiv Plus double filtration of wash water
Perforated covers over wash tank
Integral drain pump for high level waste
50°C hot fill - 3 phase - 10.4kW - 60 rack capacity / hour
10°C cold fill - 3 phase - 11.9kW - 55 rack capacity / hour
635mm x 750mm x 1470mm (1965mm)
One year parts and labour  warranty

Detergents available please contact us for more details


Meiko

for current pricing see our new website with online purchase facility - link at top of page
Meiko DV120.2Aktiv Dish and Utensil Washer
MEIKO DV120.2Aktiv
Pass Through Hood
Dish and Utensil Washer
with Integral Softener

(shown with optional tabling
and pre-rinse spray)


Dual Dish and Utensil Washer
Up to 1080 Dinner plates per hour
Basket size 500mm x 500mm
Passing height of 440mm
60,90 and 210 second programmes
Internal basket guides adjustable on site for corner or straight operation
Suitable for untreated hot or cold fill
Detergent and rinse aid dosing pump incorporated
Soft start feature on wash pump motor
Wash and rinse system top and bottom
Hose and cable connection kit included
Touch sensitive controls (no switches)
Hot or cold connection can be selected at time of installation
Class 'A' air gap with rinse booster pump
Two finger type plate racks
One open type cup / bowl rack
Two universal utensil washing racks
Two eight compartment cutlery racks
Self cleaning cycle following drain down
Wash pump rating 1.1kW
Aqua stop system for water leak detection
Aktiv Plus double filtration of wash water
Perforated covers over wash tank
Integral drain pump for high level waste
50°C hot fill - 3 phase - 10.4kW - 60 rack capacity / hour
10°C cold fill - 3 phase - 11.9kW - 55 rack capacity / hour
635mm x 750mm x 1470mm (1965mm)
One year parts and labour  warranty

Detergents available please contact us for more details


Meiko

for current pricing see our new website with online purchase facility - link at top of page

    Home ]

Pass through commercial dishwashers for foodservice premises
